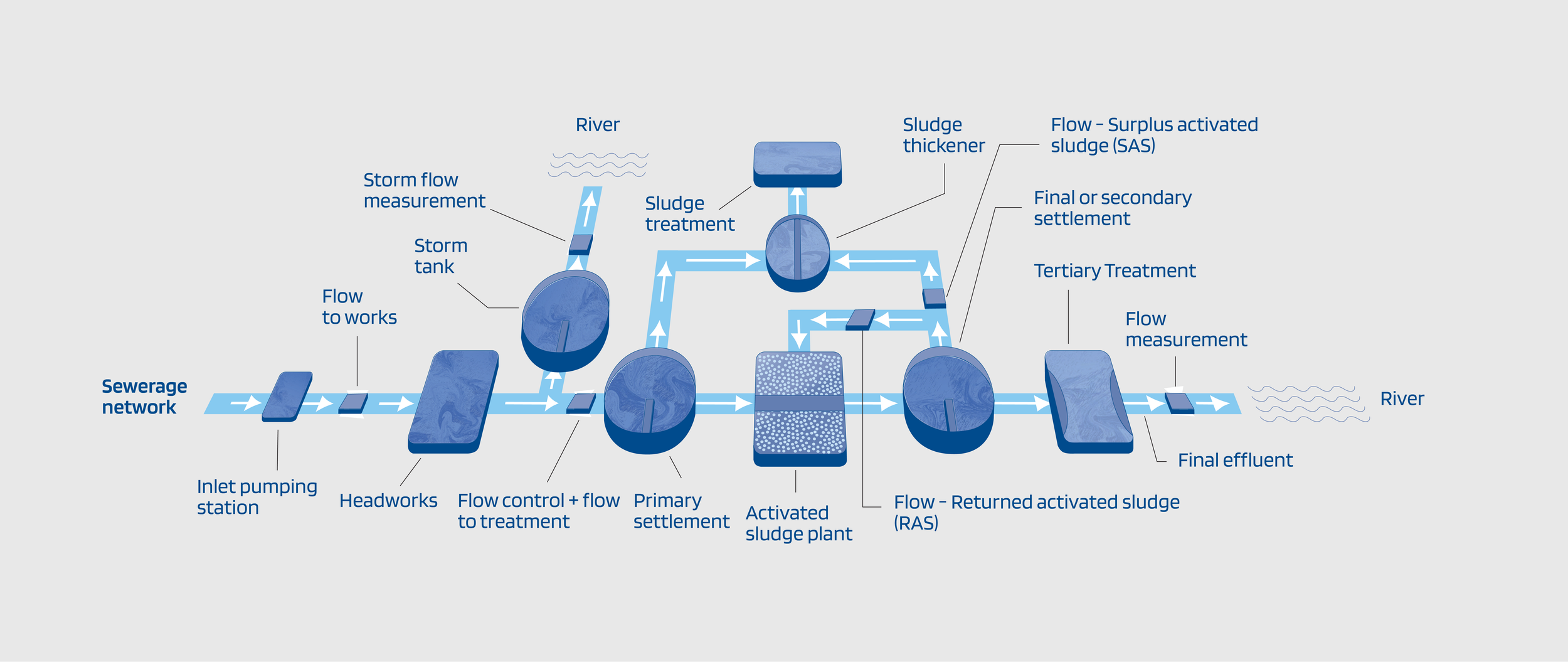

Headworks
Inlet pumping station
3100 Ultrasonic level, 9700 hydrostatic pressure transmitters with 3491 programmable pump controllers for automated control of up to 4 pumps
2051 Pressure transmitter for pumping main pressure
Inlet flow measurement
8700 Magnetic flow meters for full pipes, Smart Meter Verification and diagnostics
3100 Ultrasonic transmitter and 3493 flow controller for open channel flow
Automatic screen control
3100 Ultrasonic level transmitters and 3492 differential level controllers for automatic control of screen rake system
Primary Treatment
Automatic desludging
MSM400 Sludge density monitor for automatic desludge control
Sludge density measurement
MSM400 Sludge density measurement directly in tank or in-line pipe measurement
Primary/secondary clarifiers
5400 Non-contacting radar level
3100 Ultrasonic level for open tanks
9700 Hydrostatic pressure transmitters
2051 Pressure transmitter with 1199 diaphragm seals for DP level measurement
3491 Controllers for level measurement and control
Sludge transfer
8700 Magnetic flow meters for full pipes, Smart Meter Verification and diagnostics
Sludge digester
5400 Non-contacting radar level
Biological Treatment
Aeration flow monitoring
485 Annubar® averaging pitot tubes
405 Compact orifice plates
2051 Differential pressure transmitters for volume and mass flow of air to aeration lanes
Secondary Treatment
Final settlement blanket monitoring
433 Fixed sludge interface level for final and secondary settlement tanks
Dissolved air flotation (DAF)
2051 Pressure transmitters for air pressure measurement
Tertiary Treatment
Level Measurement
3100 Ultrasonic level transmitter
9700 Hydrostatic pressure transmitters
3491 Controllers for level measurement and control
Sand filter backwash control
2051 Differential pressure transmitters for head loss across filters
Backwash solids detection
433 Ultrasonic interface level sensors and controllers
Final effluent discharge monitoring
3100 Ultrasonic level transmitter and 3493 flow controller
8700 Magnetic flow meters for full pipes, Smart Meter Verification diagnostic
2051 Pressure transmitter for pump discharge monitoring
Chemical treatment
3100 Ultrasonic level
5400 Non-contacting radar level
2051 Pressure transmitter with diaphragm seal for tank level
3491 Controllers for level measurement and control

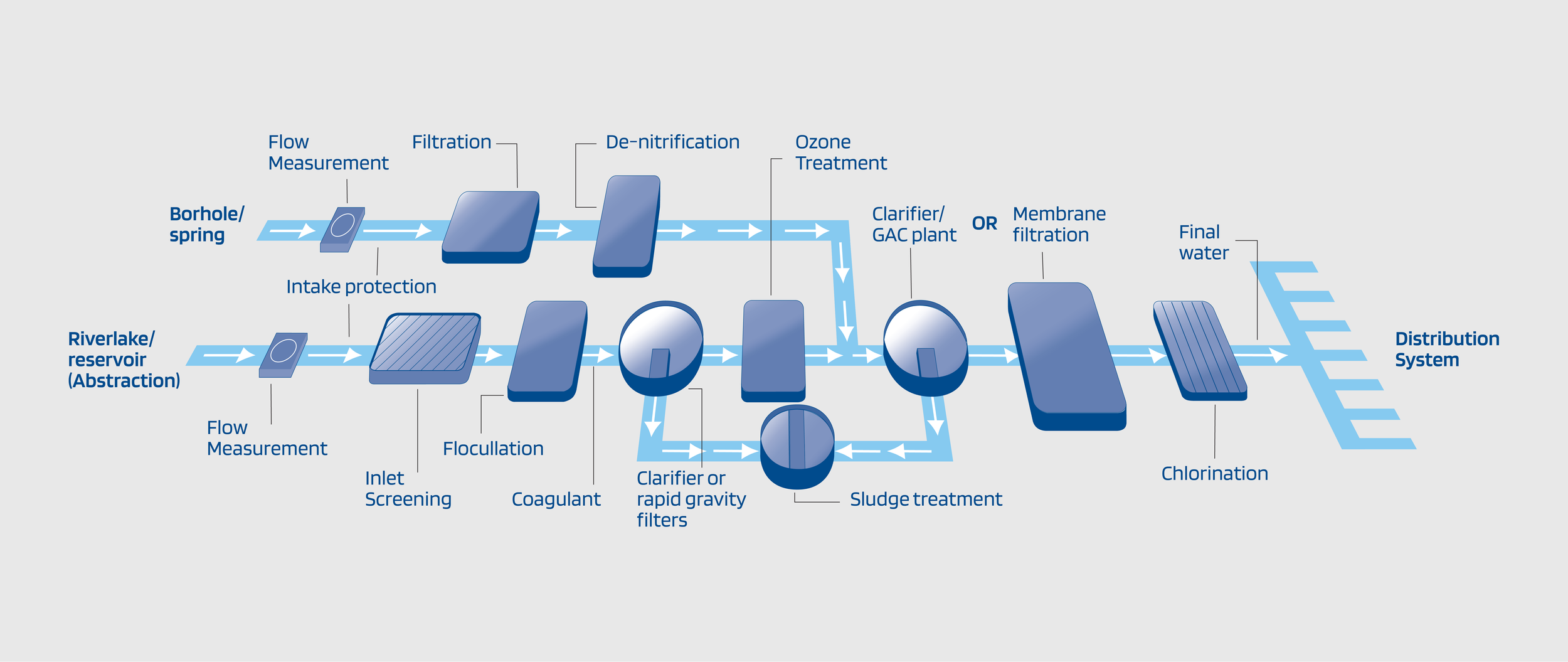

Surface and Well Water
Flow measurement: open channel and closed pipe
3100 Ultrasonic transmitter and 3493 open channel flow controller
700 Magnetic flow meters for full pipes,
Smart Meter Verification diagnostic
Inlet Monitoring and Screening
Level measurement
3100 Ultrasonic level
9700 Hydrostatic pressure transmitters
3491 Controllers for level measurement and control
Flow measurement
8700 Magnetic flow meters for full pipes
Filtration
Level measurement
3100 Ultrasonic level transmitters
9700 Hydrostatic pressure transmitters
3491 Controllers for level measurement and control
Filter backwash control
2051 Differential pressure transmitters for measuring head loss across filters
Backwash solids detection
433 Ultrasonic interface level sensors and controllers
Flow to filters and backwash flow
8700 Magnetic flow meters for full pipes
GAC Plant
GAC Interface level
433 Fixed alarm interface level sensors
Level measurement
3100 Ultrasonic level transmitters
9700 Hydrostatic pressure transmitters
3491 Controllers for level measurement and control
Backwash solids detection
433 ultrasonic interface level sensors and controllers for detecting backwash solids and/or blanket lifting during backwash
Chemical Treatment
Level measurement
3100 Ultrasonic level transmitter
2051 Pressure transmitter with diaphragm seal
3491 Controllers for level measurement and control
5708 Solids scanner
Flow measurement
Coriolis mass flow, density,
concentration 8700
Magnetic Flow Meters
Clarifier
Clarifier level
3100 Ultrasonic level transmitters
9700 Hydrostatic pressure transmitters
3491 Controllers for level measurement and control
Sludge Treatment (Waste)
Automatic desludging
MSM400 Sludge density monitor for initiation of automatic desludge control
Sludge density measurement
MSM400 Sludge density measurement for in-tank or in-line pipe measurement
Digester
5400 Non-contacting radar level
5300/3300 Guided wave radar for lime dosing level
3100 Ultrasonic level transmitters
9700 Hydrostatic pressure transmitters
3491 Controllers for level measurement and control in closed and open tanks
Distribution System
Network pressure
2051 Pressure transmitter for pump discharge and network pressure
Network flow
3051S Differential pressure for DP flow
8700 Magnetic flow meters for full pipes, Smart Meter Verification diagnostic
485 Annubar averaging pitot tubes
405 Compact orifice plates
